Magnum Mat underfloor heating
The Magnum Mat is a unique underfloor heating mat. The system was developed to be able to install floor heating over an existing tiled floor or over a finished floor already laid. The mat is about 4 mm thin and can be included in an adhesive layer without demolition and milling is necessary. The mat lies almost directly under the surface. This increases the heating speed of the floor which also makes the system suitable for areas with non-permanent occupancy such as bathrooms, hobby rooms, recreation etc. The advanced thermostat takes into account the required warm-up time so that your floor is always at the right temperature at the desired time.
Magnum Mat is available in 22 different surface areas from 0.75 to 25 m². Because the heating cable on the mat is interconnected at the end, there is only a power cable on one side, which is invisibly attached through a unique connection. This eliminates the need for a return to the thermostat.

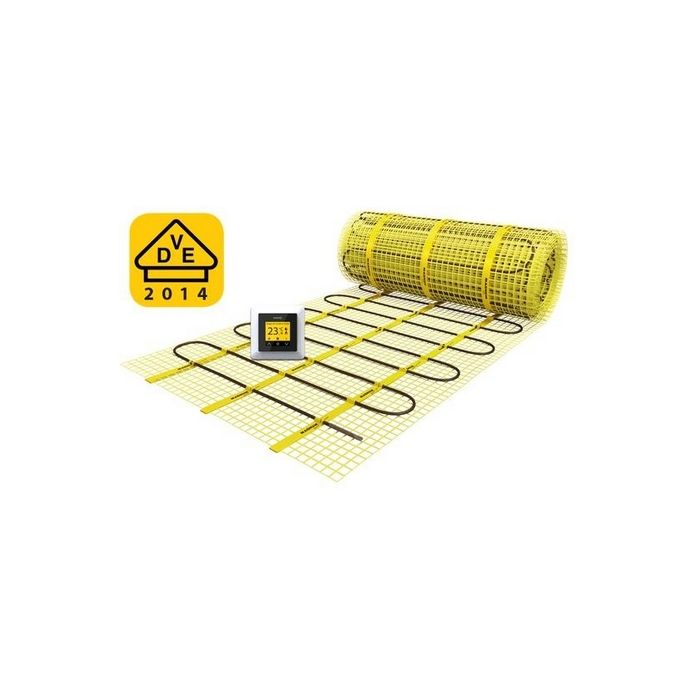

Magnum Mat is supplied as a complete set
- Heating mat

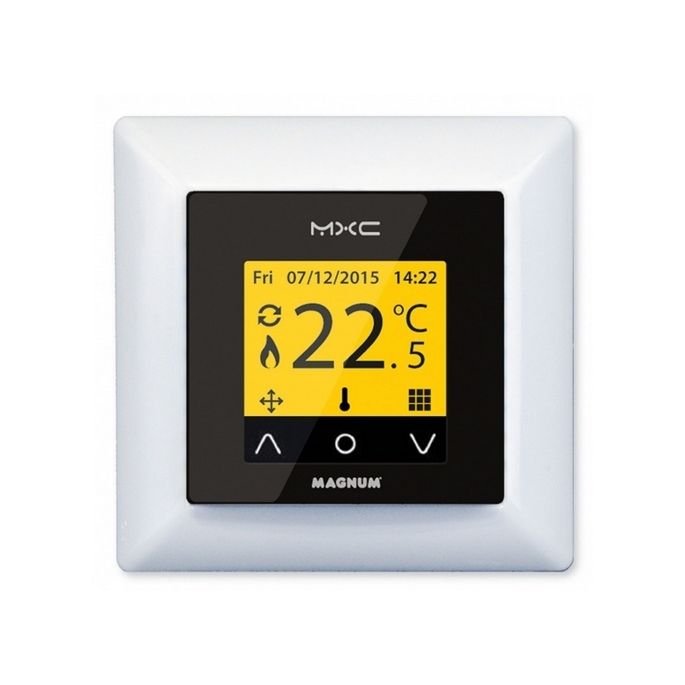

- Magnum X-treme Control thermostat including floor sensor
- Flexible pipe for floor sensor
- Installation instructions & Check/Check card
Quality mark
The Magnum Mat is VDE approved. VDE is one of the largest technical and scientific inspection bodies in Europe.
Warranty
Magnum Mat has a lifetime warranty on the electrical operation of the heating mat and 2 years on the thermostat and floor sensor.

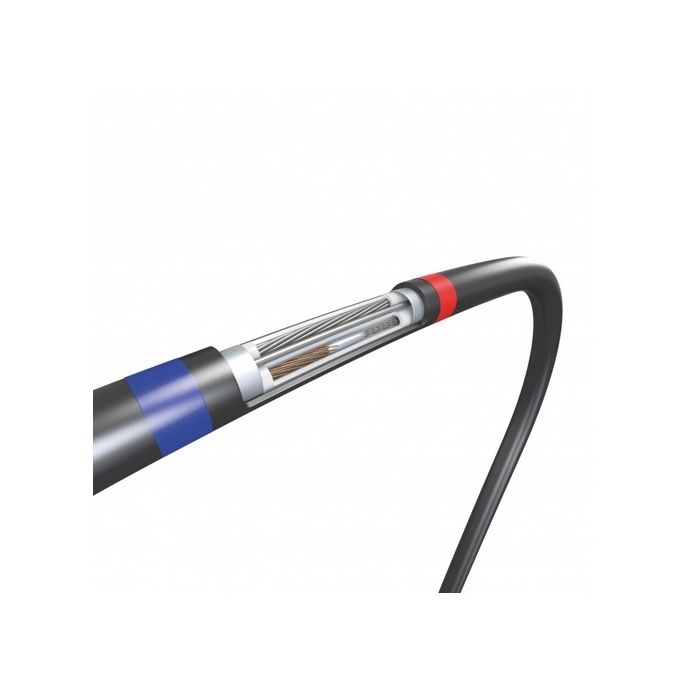

Technical data.
- EMC-free 2-conductor cable attached to fiber optic network
- 2.5 meter three-wire power cable
- Full enclosure by aluminum ground sheath
- Unique blind connection between heating and connection cable
- Chrome/Nickel resistance wire
- PTFE (Teflon) insulation
- PVC protective jacket
- 10 -11 Watt per meter resistance wire, 230 Volt
- Cable diameter approx. 4 mm
- Mat width 25 or 50 cm
- Complies with current NEN standards for installation throughout wet areas
- 0.75 m² - 10.0 m²: 150 Watt per m² / 12.0 m² - 25.0 m²: 125 Watt per m²

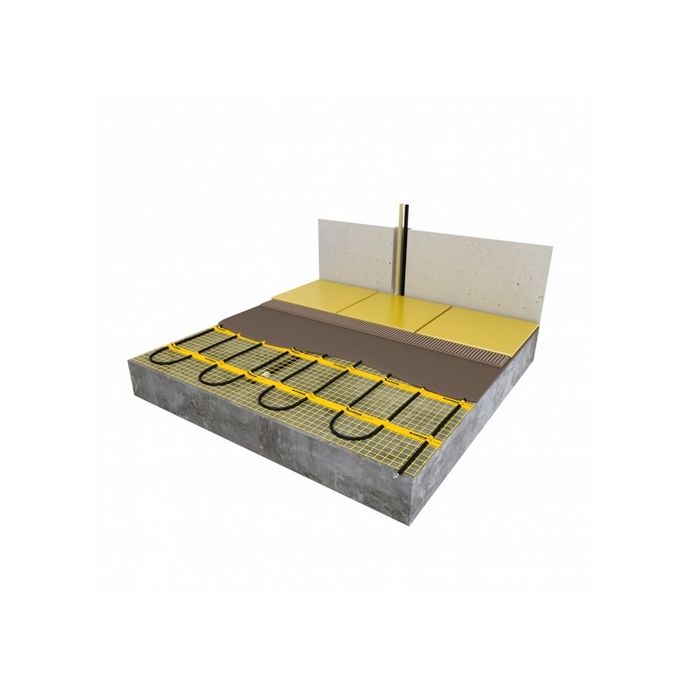

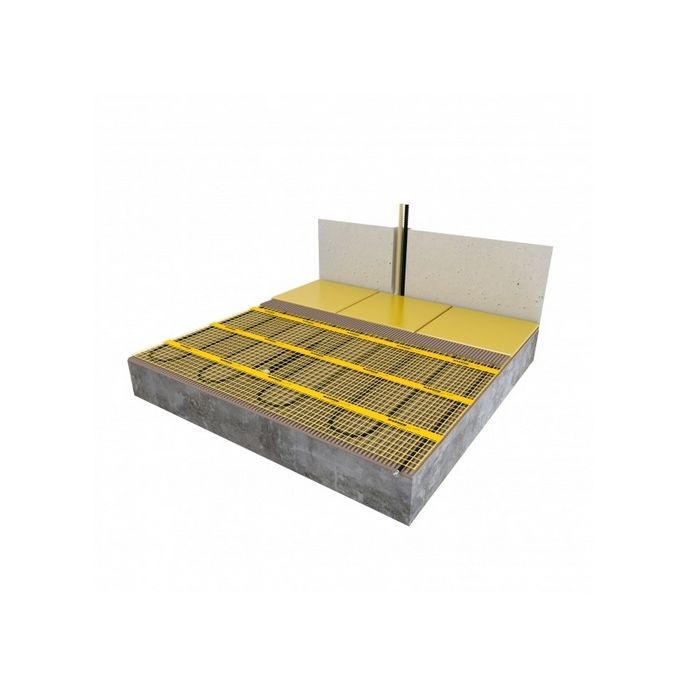

Installation methods
- Directly in tile adhesive
- Self-levelling screed mortars
- In plaster/mortar
- Anhydrite floors
