Handicare (Linido) 10659 toilet riser with folding armrests and lid white
Handicare (Linido) 10659 toilet riser with folding armrests and lid white
- toilet raiser
- with armrests

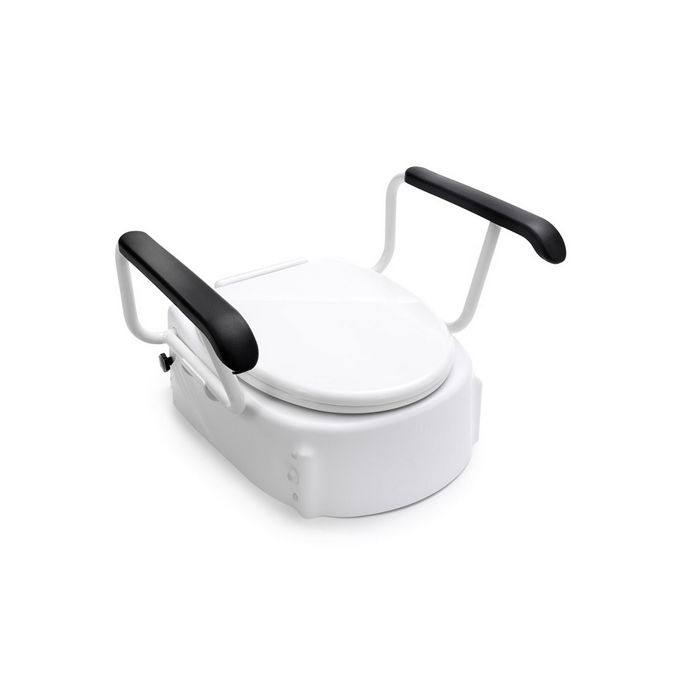

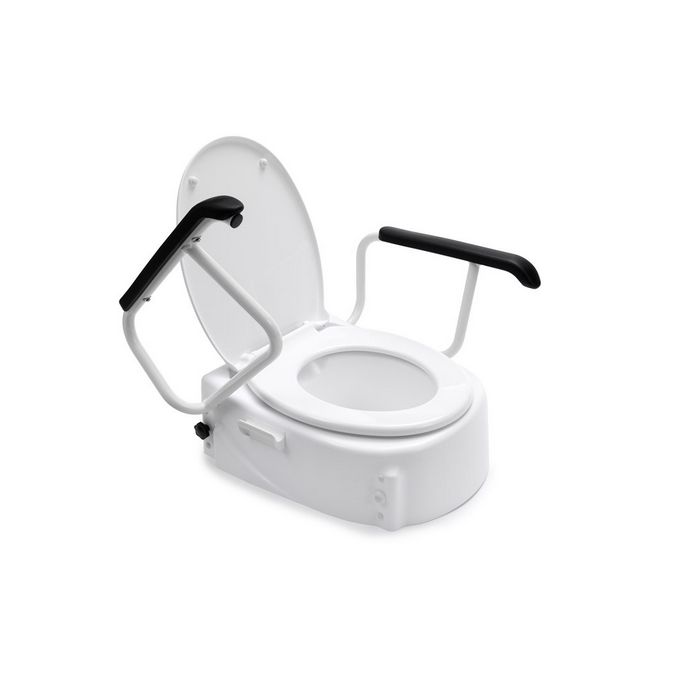

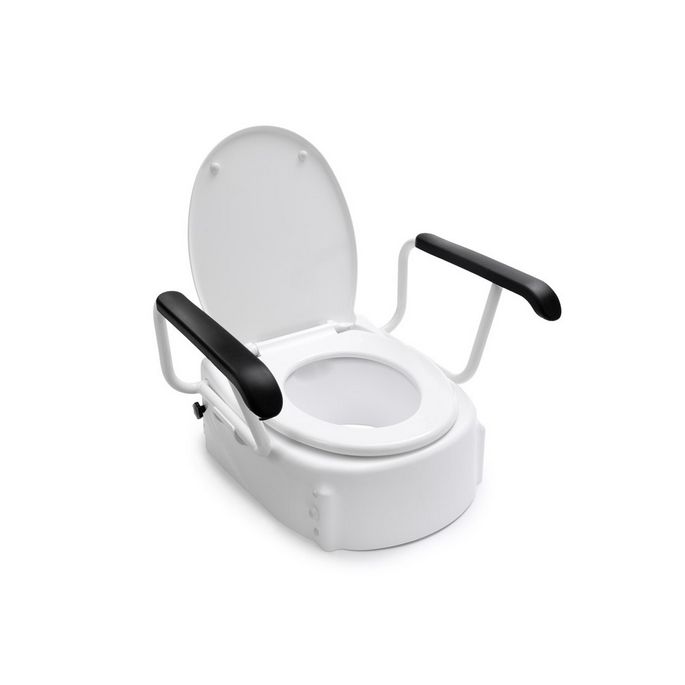

Handicare (Linido) toilet raiser with folding armrests and lid
Toilet raiser with armrests and lid:
Raises the seat height of a toilet by 85 mm, 125 mm or 165 mm
Raising the toilet makes sitting down and getting back up easier and safer for the user. The Handicare toilet raiser with armrests and lid raises the seat by 85 mm, 125 mm or 165 mm.

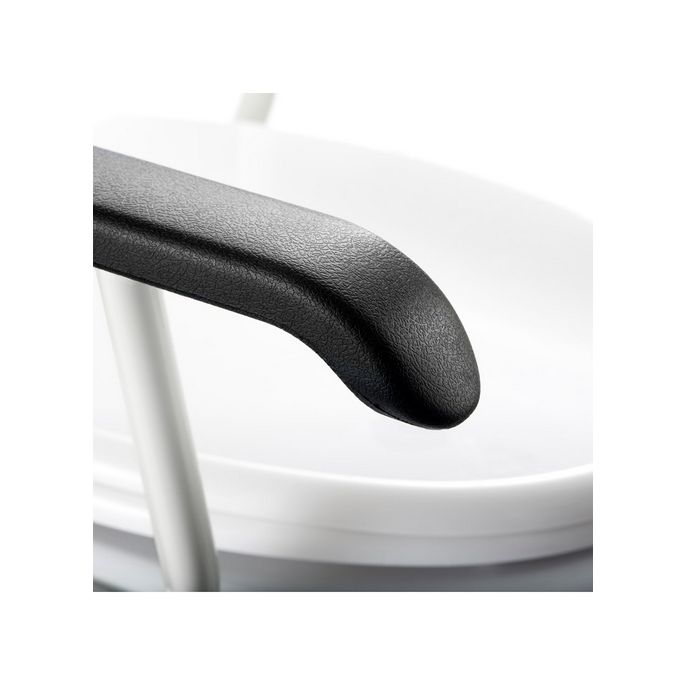

The armrests provide extra comfort to both the forearms during toilet visits and to the hands while sitting down and standing up again. Moreover, the toilet riser also has openings in the front and back which makes it easier to reach intimate body parts without having to stand up. If desired, it is possible to sit on a standard toilet seat. You can also choose to use it without a toilet seat.
The toilet riser with lid offers a quick, easy and convenient solution to make the existing situation safe again, without permanent modifications.
*Easy to install, no tools required.
*Fits most toilet bowls
*Increases the toilet seat by 85 mm, 125 mm or 165 mm
*Possibility of wedge adjustment so that the angle in hips and knees becomes greater than 90 degrees, which can be pleasant for joint pain
*Hygiene openings at the front and back
*Independent folding armrests, also removable
*Provides support during sitting and standing transfers
*Can be used with or without lid
*Includes standard toilet seat and lid
*Easy to clean by regular wiping with normal household detergent

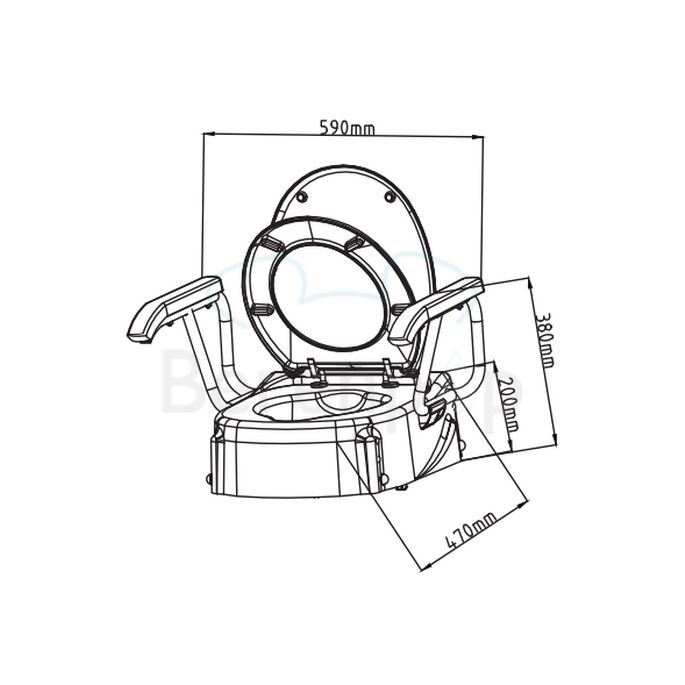

Technical Information.
Material, seat: PlasticMaterial, armrests Aluminum and PUR
Max. user weight: 130 kg
Overall width: 590 mm
Overall height: 380 mm
Overall depth: 470 mm
Seat depth: 420 mm
Seat width: 360 mm
Seat height: 85 mm, 125 mm or 165 mm
Hygiene opening: front and back
Distance between armrests: 485 mm
Armrest height, in relation to the seat: 210 mm
Overall length, armrests: 450 mm
Length, PUR armrests: 380 mm
Assembly instruction
Seat:
1. Remove the existing toilet seat.
2. Unscrew the two white plastic security nuts, which are already attached to the two M8 threaded studs.
3. Place the toilet riser on the toilet and position the two M8 threaded ends in the two existing holes on the toilet.
4. Once the M8 threaded ends are positioned in the mounting holes, screw the two white security nuts onto the M8 threaded ends until they are fully engaged.
Armrests:
1. Insert the left armrest, in the folded position, into the hole on the left side of the toilet riser until the depressed button is in place.
2. Press the button and push it further into the hole. When the armrest is brought far enough into the hole, the button will come back up.
3. Bring the armrest into its lowered position. Repeat this process on the right side with the right armrest.
Height adjustment:
The supplied toilet riser is placed at a height of 125 mm during production. If adjustment is required, perform the following procedure.
1. Determine the required height: 85, 125 or 165 mm.
2. Remove the two black screws on the back of the toilet riser and the two white screws on the front of the seat.
3. Open the 4 holes of the desired height by removing the rubber caps.
4. Place the tube of the product and the screws at the desired height on both sides. Make sure the same height adjustment is applied on both sides of the seat.
5. Place the rubber caps in the empty holes to fill them.
Note: The front and rear height adjustment need not be the same.
