Geberit 240785001 Type 380 float valve with armored hose
Geberit 240785001 Type 380 float valve with armored hose
Geberit Impulse 380 float valve

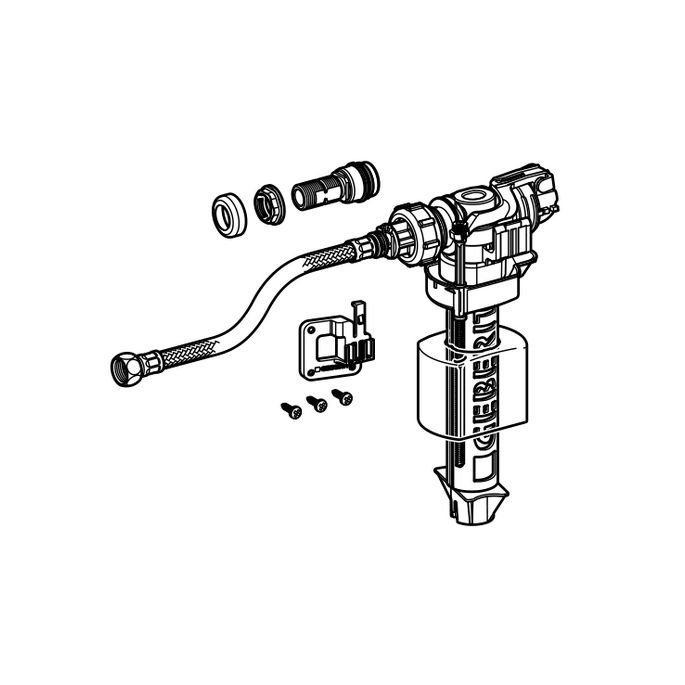

Fill valve Type380 with armored hose with swivel 3/8" and nipple with 3/8" external thread
EAN code: 4025416334170
Scope of application
*For filling tanks
*Applicable for greywater (rainwater) when a filter is used
*For use with pure tap water
*For installation in surface-mounted cisterns
*For installation in cisterns
*For installation in ceramic cisterns
*For surface-mounted and recessed cisterns from competitors.
*Not suitable for application of water with increased chlorine content (swimming pools etc.)
*Not suitable for the application of cleaning, disinfecting and coloring agents, which are inserted into the cistern
Features
*Filling height can be adjusted by turning the spindle
*Valve opens when the water has dropped 20 mm
Technical data
*Working pressure: 0.110 bar
*Flow rate at 0.5 bar: 0.07 l/s
*Flow rate at 3 bar: 0.19 l/s
*Pipe noise at 3 bar: 12 dB(A)
*Pipe noise at 5 bar: 18 dB(A)
*Water storage pressure increase at 6 bar: +1 bar
*Maximum storage temperature: 40 °C.
*Maximum operating water temperature: 25 °C
Scope of delivery
*Adapter
*Fastening material
