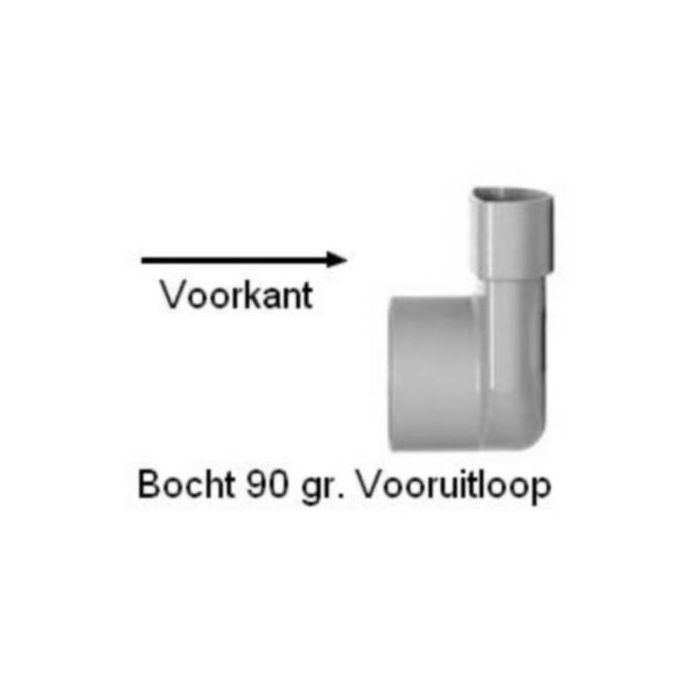

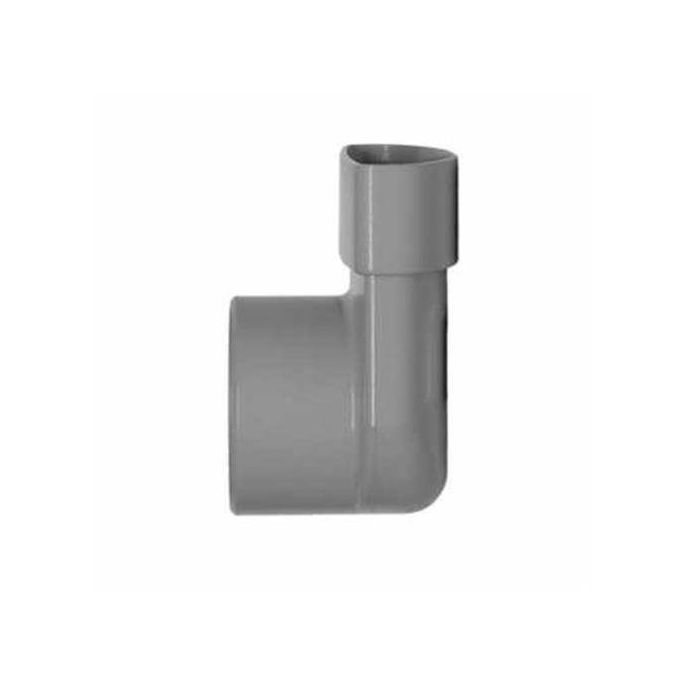

Easy Drain Slim STB02 bend 90 degrees forward (each)
Easy Drain Slim STB02 bend 90 degrees forward (each)
SlimTube drainpipe
The ingenious drainpipe
An ingenious thin drainpipe that makes the installation of a drainpipe of washbasin, fountain etc. simpler, cheaper and more efficient. Instead of a PVC drain of around 40 mm, you can now save time and aggravation with SlimTube. Cutting a recess of 40 to 50 mm is a thing of the past. SlimTube can also be installed in front of the (concrete) wall and filled in with plaster or screed. (e.g. Blueboard/Wedi). This saves a lot of installation space.
Low installation depth
Slim Tube is only 20 mm deep, so much less cutting and milling is required. The risk of irreparable damage to the wall (front and back) is now a thing of the past and the wall construction remains virtually intact.
Fully adjustable
Slim Tube is made of PVC, therefore easy to glue. You can cut the tube to size and fit the fittings. SlimTube comes standard with transition rubber 40/32 and specimen cap. If necessary, Slim Tube can be installed in front of the wall and filled in with plaster or finishing boards. Use Slim Tube only vertically.
Technical Information
*Material - Gluable ABS
*Diameter - 40 mm internal (siphon connection) / 50 mm external (drain connection).
*Width - 65 mm
Installation
*Cut the flat oval PVC pipe to the desired length
*Unburr the ends of the pipe and fitting, sand and clean carefully
*Lubricate the pipe evenly with PVC glue/adhesive and connect directly
*Remove excess glue and do not apply pressure to the joint while drying
*For more information, see the package insert of the PVC adhesive used
