Easy Drain M-line MLINE70050 shower channel 70cm side spout
Brand:
Easy Drain M-line MLINE70050 shower channel 70cm side spout
€444.00
incl. VAT
stainless steel brushed
tile
Wall drain without flange
700mm
Easy Drain M-line MLINE70050 shower channel 70cm side spout
General
Brand
Easy Drain
Series
Easy Drain M-line
Delivery time
1 - 2 weeks
Color
- stainless steel brushed
- tile
Shower drain
Installation option
Wall drain without flange
Installation depth
- 80mm - 89mm
- 90mm - 99mm
- 100mm - 109mm
Grate length
700mm
Max drainage capacity
42 l/min
Grate width
70mm
Outlet
Horizontal outlet
Grate look
- closed / smooth
- own tile
Outer tube diameter
50mm
Pre-assembled sealing membrane
Yes
Showerdrain one-pack
- Yes
- standard with grid
Description
Easy Drain M-line
Brushed stainless steel / Tile

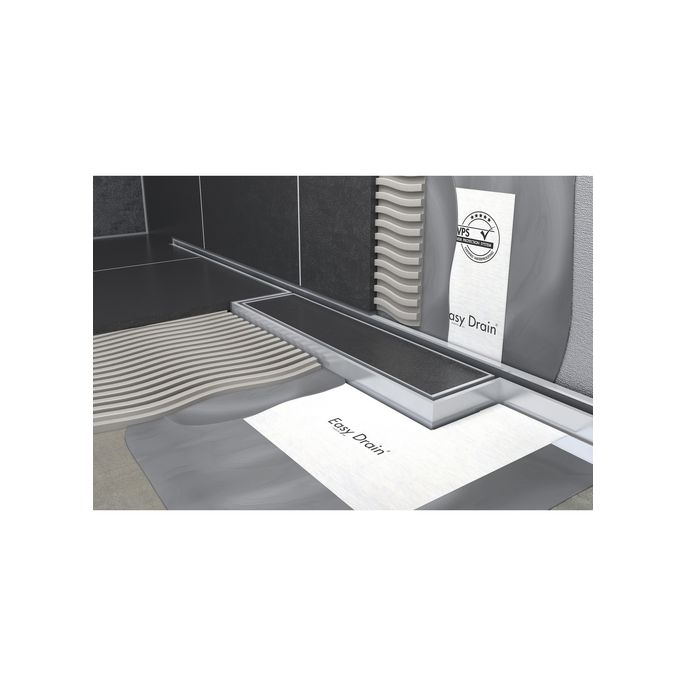

With the Easy Drain M-Line, you have chosen one of the lowest shower channels in the world. Produced by the inventor of the shower drain. Virtually invisible and stylish wall drain with patented TAF and WPS system. The TAF system is specially designed to allow drainage of secondary water. With the factory pre-assembled sealing cloth (WPS Technology), it also guarantees 10 years of watertightness.
- MODEL: Shower drain
- SERIES: M-line
- APPLICATION: New building, renovation
- CERTIFICATION: DIN 18534, EN 1253, ETAG-022
- FLOOR TYPE: Concrete/Cement, Wood floor, LEWIS slabs
- FINISHED FLOOR: Thin tiles, Glasmosaic, Natural stone, Tile / Ceramic / Mosaic
- INSTALLATION DEPTH OF THE BASIC SET (MM): 83
- MIN. INSTALLATION DEPTH (MM): 90
- CONNECTION (Ø): 50
- FITTINGS: No
- INSTALLATION: Wall
- DIMENSION (MM): 700 mm
- SUPPLY TYPE: fixed spout
- WATER TRAP (MM): 50
- INBOARD: Fixed outlet | water trap 50 mm
- OUTLET TYPE: Side outlet
- CONSTRUCTION OPERATIONS: Three-sided mounting, One-sided mounting
- MAX. DRAINAGE CAPACITY (L/MIN): 42
- FACTORY FURNISHED WATERPROOFING : Yes
- Siphon: Cleanable siphon
- ROOSTER: Brushed stainless steel / Tile
- GRID PATTERN: Zero / Closed
- ADJUSTABLE DESIGN PART: No
- TYPE FRAME: TAF (Tile Adjustable Frame)
- FRAME MATERIAL: Stainless steel (304)
- WHEEL ACCESSIBLE: Yes
- TRAVEL KIT AVAILABLE: No
