Brauer Carving 5-GM-133 thermostatic concealed rain shower 3-way diverter SET 37 gunmetal brushed PVD

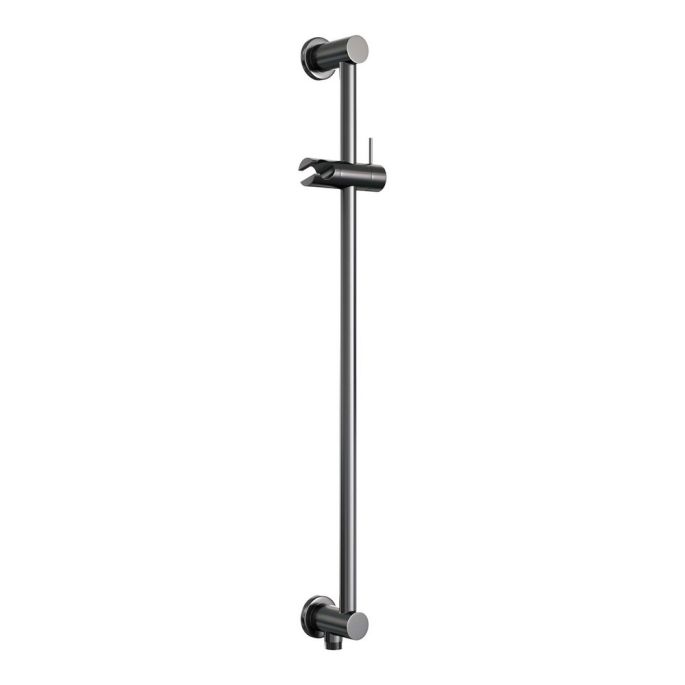

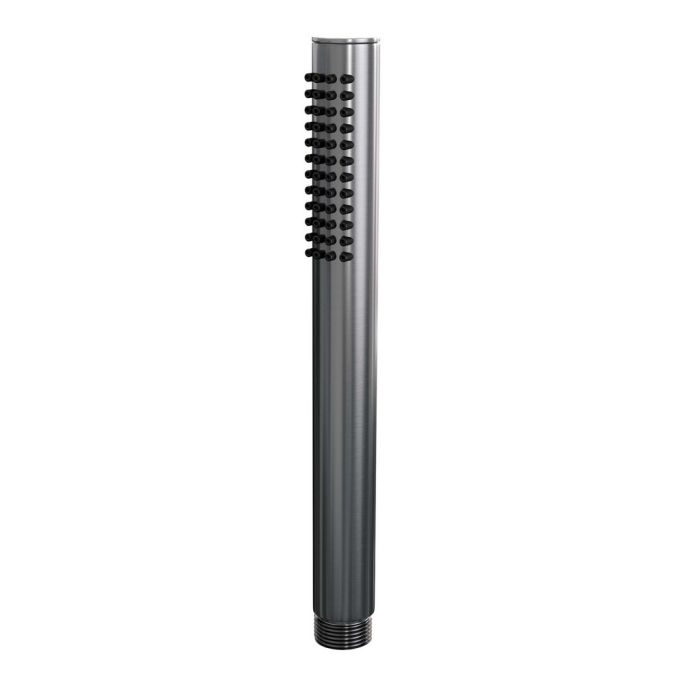

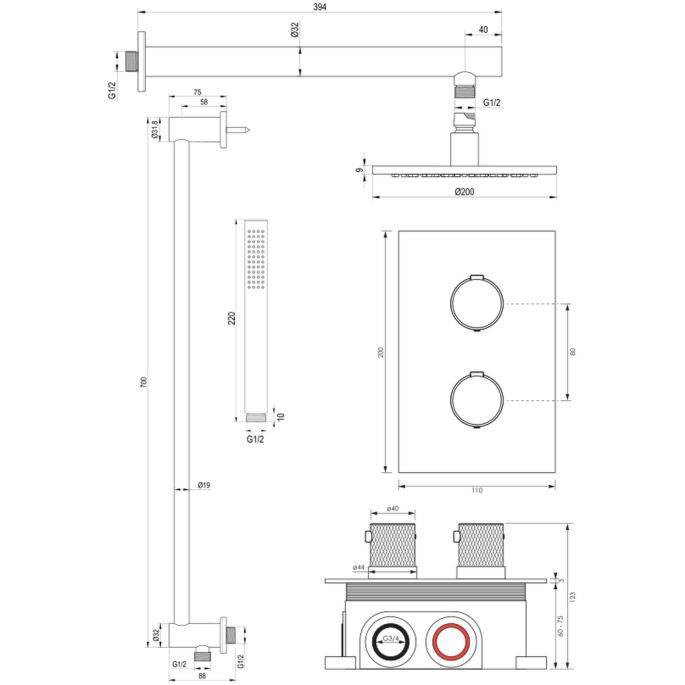

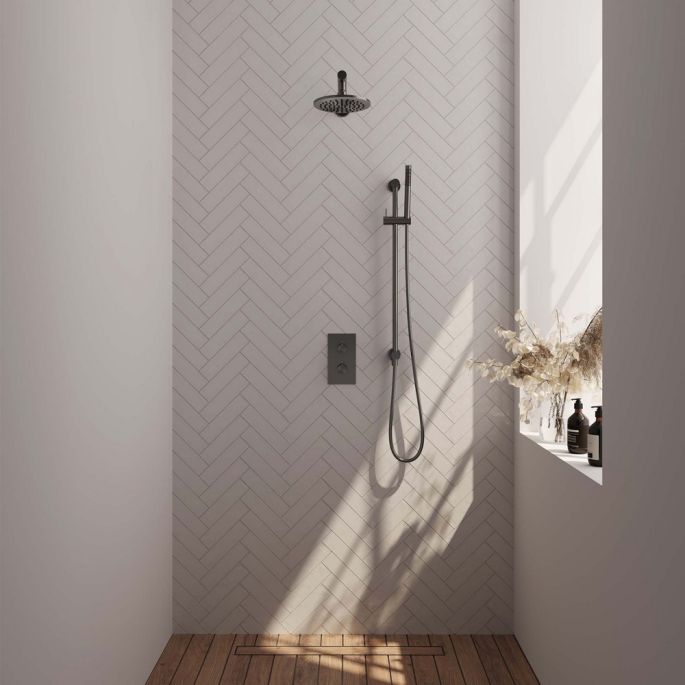

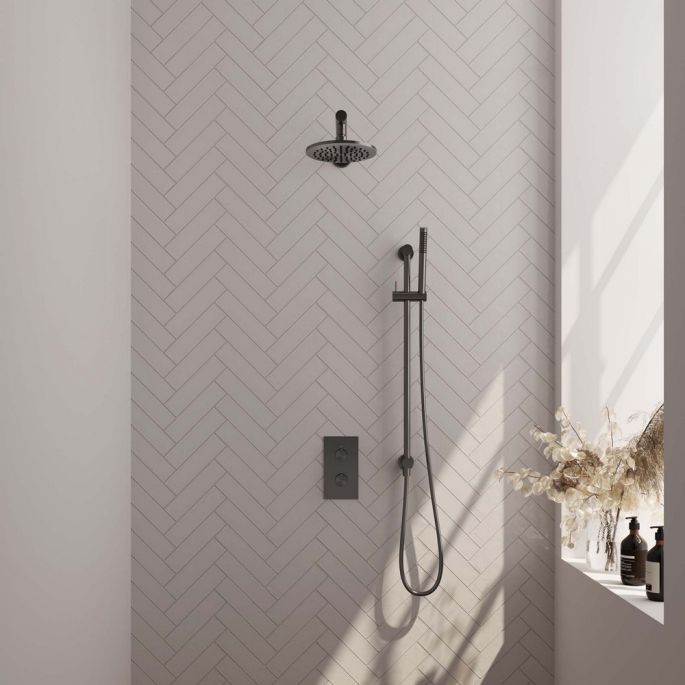

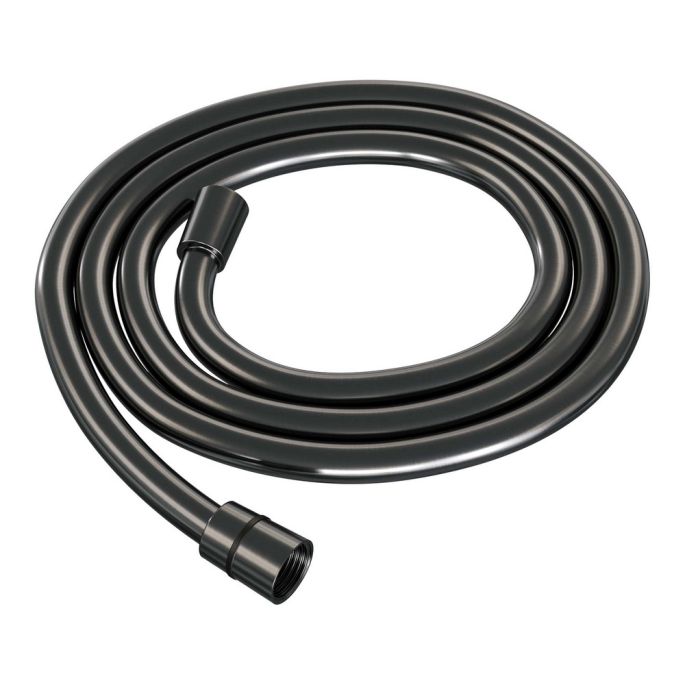

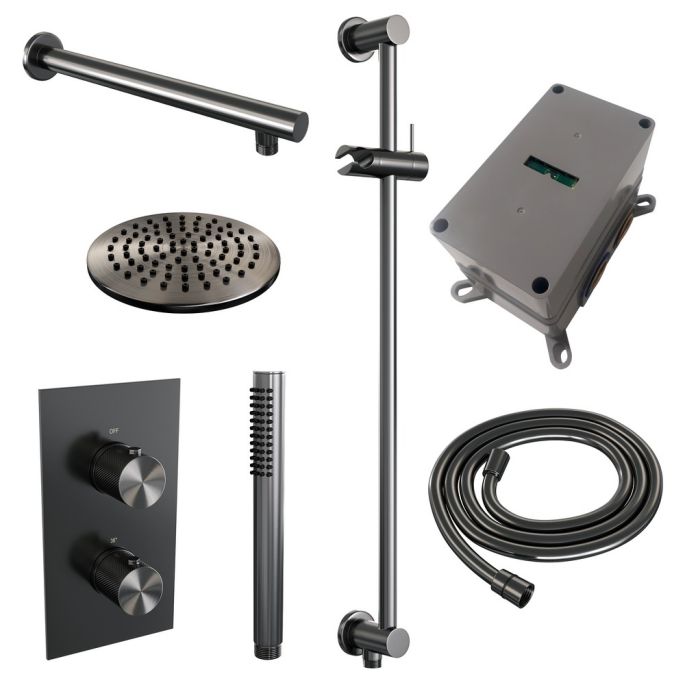

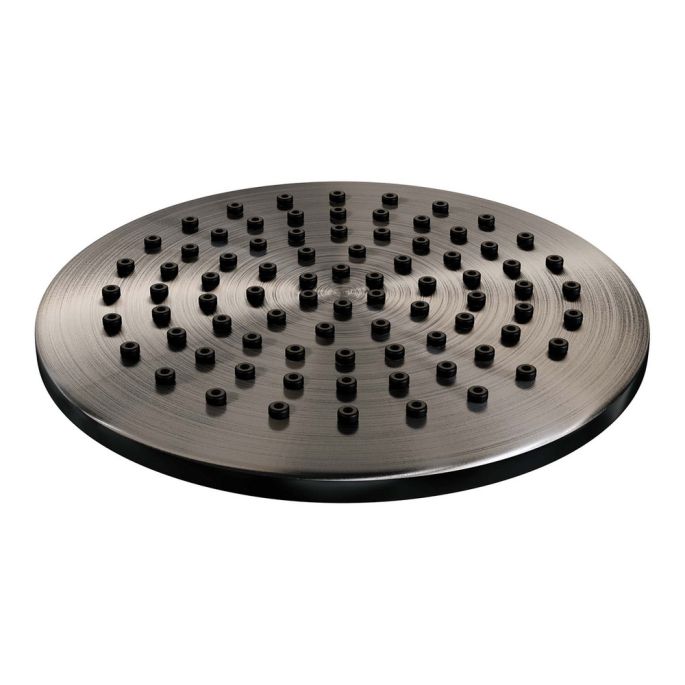

Brauer Carving 5-GM-133 thermostatic concealed rain shower 3-way diverter SET 37 with 20 cm shower head and straight wall arm and rod hand shower and shower hose and integrated sliding bar gunmetal brushed PVD

Thermostatic concealed rain shower with 3-way diverter

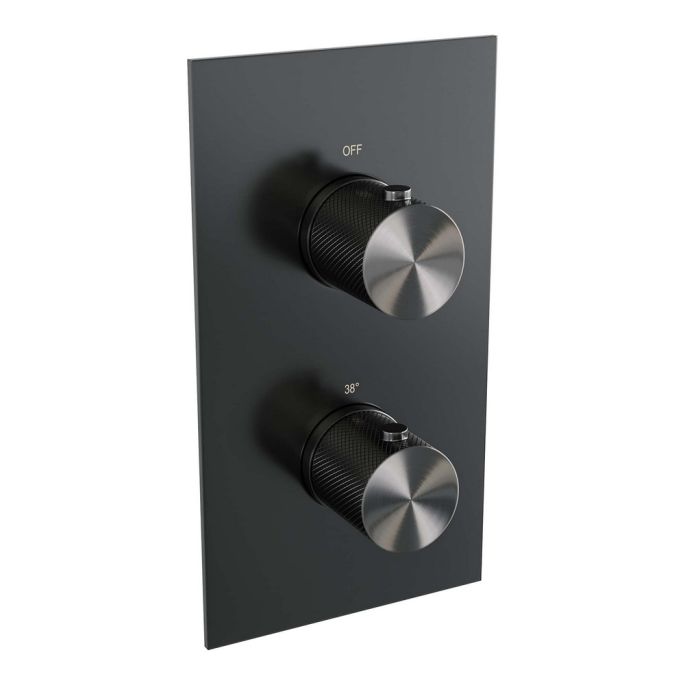

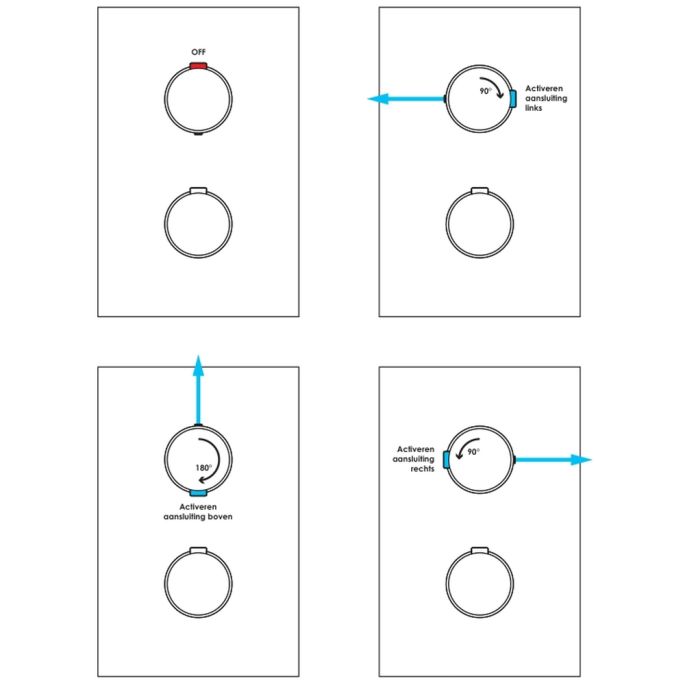

Our thermostatic concealed rain showers with 3-way diverter are very user-friendly. With the upper dial you can easily switch between overhead and handheld shower, and with the lower dial you can regulate the temperature. There are all kinds of set compositions to choose from, will you go for a large or smaller rain shower, to
a ceiling or wall arm? And where do you prefer to place your hand shower?

The sets use two of the thermostat's three product connections. It is therefore possible to extend the thermostatic concealed rain showers with 3-way diverter with a third product.

Head and hand shower cannot be used at the same time. If this is desired, you can choose a set with a concealed thermostat with stop valves or a set with a concealed thermostat with push buttons.

The thermostatic concealed rain shower with 3-way diverter is available from stock in 24 compositions and six colours.

Quality and finish

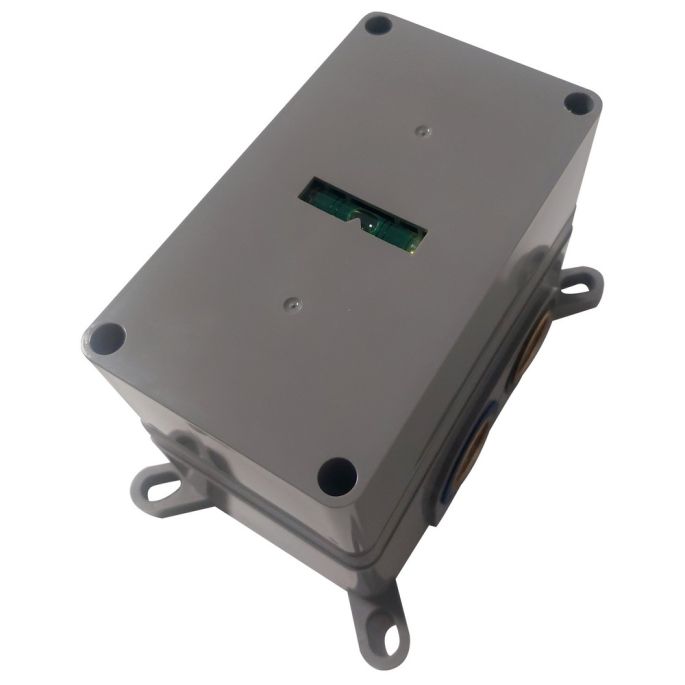

Brauer Taps are manufactured from the best materials and semi-finished products. Thus, our thermostatic concealed shower mixer has high-quality built-in parts. Our built-in parts are developed with care and are made of solid brass, and fitted with a plastic built-in box for ease of installation and extra protection.

The body of the tap and fittings is made of solid brass, to which an additional nickel layer is then applied. Nickel is smoother and provides a better base for the finish. After the nickel layer is applied, we finish the tap with a high-quality coating. An example of a high-quality coating is a PVD coating. The PVD coating makes your tap stronger and you will enjoy a deeper colour.

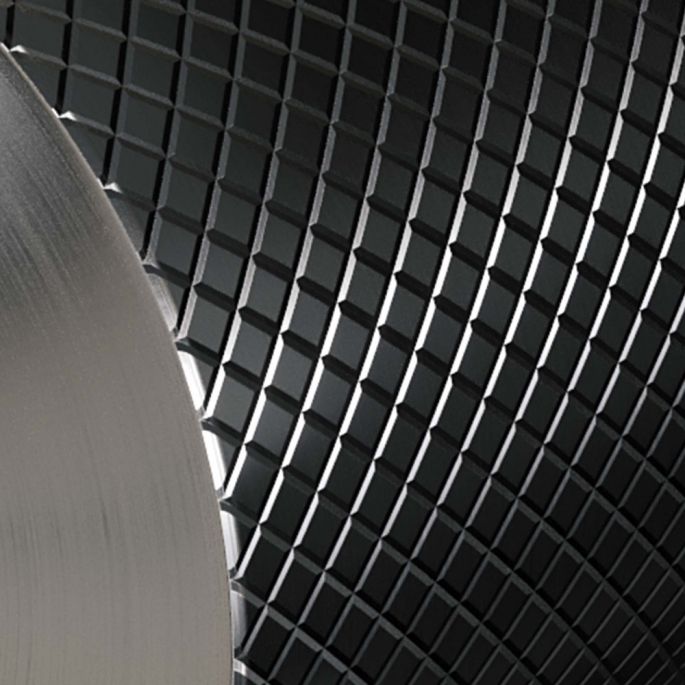

Taps from our Carving range feature an embossed pattern on control handles and knobs. This gives the tap an extra twist and tough character. For variants with a brushed finish, the nickel layer is brushed before the PVD coating is applied. This gives the taps a fuller look and sophisticated finish. What makes the finish even more stylish is the round brushing on control handles and knobs. Brauer taps are finished to perfection!

Water saving

PlusAir is a water-saving feature in rain showers from Brauer. There is a function in the shower heads that lets less water through while sucking in air and adding it to the water. As the air mixes with the reduced amount of water, the water retains its original volume. As a result, you use less water without compromising on comfort. Saving water and having a pleasant shower experience: PlusAir.

Sustainability and water consumption

• Features PlusAir


• Water consumption head 20 cm at 1 bar: 5 L/min
• Water consumption head 20 cm at 3 bar: 7 L/min
• Water flow class A


• Water consumption of head 30 cm at 1 bar: 5 L/min
• Water consumption, head 30 cm at 3 bar: 7 L/min
• Water flow class A


• Water consumption hand. 3-stands at 1 bar: 4 L/min
• Water consumption hand. 3-levels at 3 bar: 7 L/min


• Water consumption handheld bar at 1 bar: 10 L/min
• Water consumption handheld bar at 3 bar: 18.5 L/min

Water consumption 3-position hand shower based on the position
with the least consumption.
