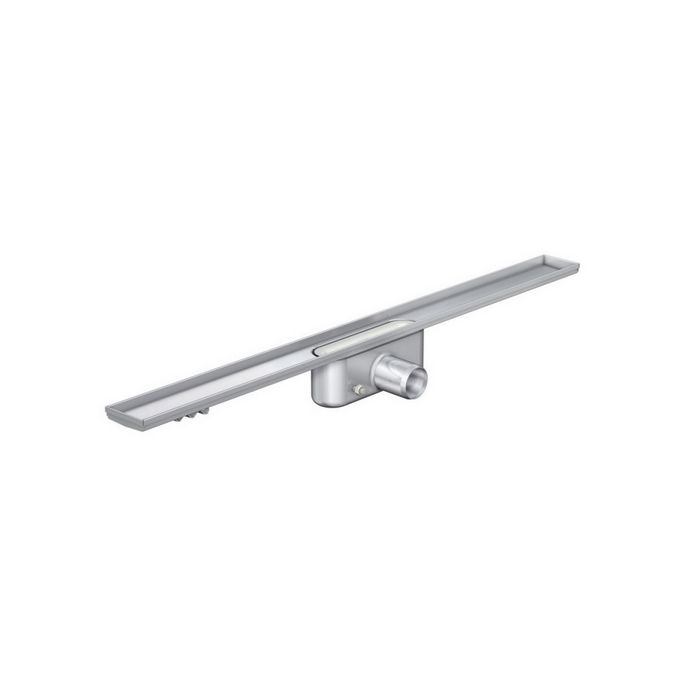

ACO ShowerDrain C 408737 shower channel 78.5cm side spout

Brand:

ACO

ACO ShowerDrain C 408737 shower channel 78.5cm side spout

ACO ShowerDrain C 408737 shower channel 78.5cm side spout

€206.90 incl. VAT

Brand:

ACO

Serie:

ACO ShowerDrain C

Categories:

Shower ,

Shower drains

rooster

Add to Wish List

Compare

stainless steel polished satin tile Floor drain without flange 785mm

Delivery time: 2 - 3 days

ACO ShowerDrain C 408737 shower channel 78.5cm side spout

General

Brand

ACO

Series

ACO ShowerDrain C

Delivery time

2 - 3 days

Color

tile
stainless steel polished satin

Shower drain

Installation option

Floor drain without flange

Installation depth

90mm - 99mm

Grate length

785mm

Max drainage capacity

48 l/min

Grate width

70mm

Outlet

Horizontal outlet

Grate look

pattern with holes
closed / smooth
own tile

Outer tube diameter

50mm

Pre-assembled sealing membrane

Showerdrain one-pack

No
with a grid of your choice

Description

ACO ShowerDrain C shower channel

The ACO ShowerDrain C program is characterized by modern design and perfect functionality. From a user perspective, the ShowerDrain C excels due to its high drainage capacity, low installation height and good cleanability.

high-quality stainless steel
Polypropylene odor trap
Stainless steel parts are passivated
grates are ground to a high gloss finish
Fully welded stainless steel gutter, no risk of leaks;
low construction height, very suitable for renovation;
odor trap is easy to remove and clean;
unique grid profile reduces risk of overflowing water;
version with vertical flange gives extra security against leakage in critical floor-wall connections.

Straight version without flange

Shower drain with Ø 50 mm spigot connection;
with loose plug socket Ø 50 mm suitable for any piping system;
Construction height: 92 mm (50 mm spigot);
made entirely of pickled and passivated stainless steel;
channel width 70 mm;
with built-in slope (V-bottom);
tested according to NEN-EN 1253-1, drainage capacity standard 0,8 l/s, against back wall 0,7 l/s;
removable PP trap (2-piece);
satin stainless steel grille.
