Easy Drain Multi Tile drain EDT1800 shower drain 180cm side extension

Price:
496,00
1 - 2 weeks
EDT1800
+

General

Brand:
Easy Drain
Series:
  • Easy Drain Multi Tegeldrain
Delivery time:
  • 1 - 2 weeks
Color:
  • tile

SHOWER DRAIN

Installation option:
  • Floor drain without flange
Installation depth:
  • 80mm - 89mm
  • 90mm - 99mm
  • 100mm - 109mm
  • 110mm - 119mm
Grate length:
  • 1800mm
Max drainage capacity:
  • 49 l/min
Grate width:
  • 98mm
Outlet:
  • Horizontal outlet
Grate look:
  • own tile
Outer tube diameter:
  • 50mm
Pre-assembled sealing membrane:
  • No
Showerdrain one-pack:
  • Yes, standard with grid

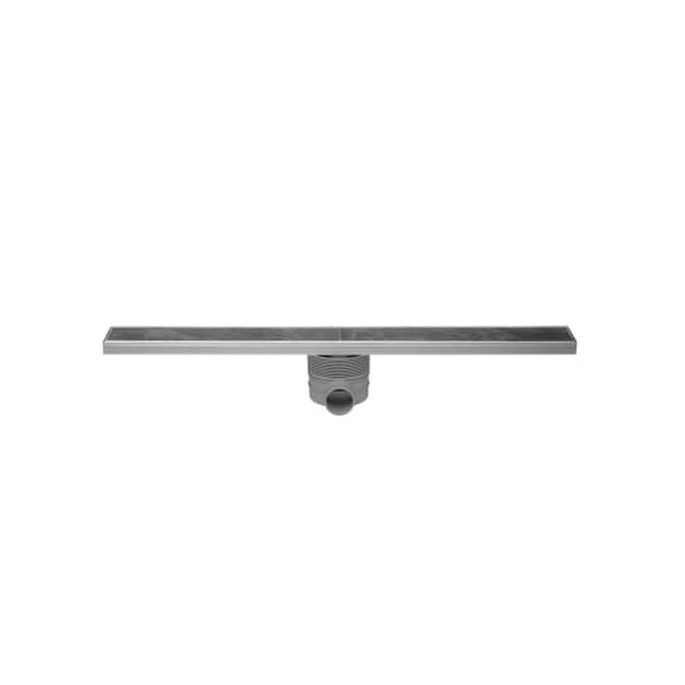

Easy Drain Multi Tile drain

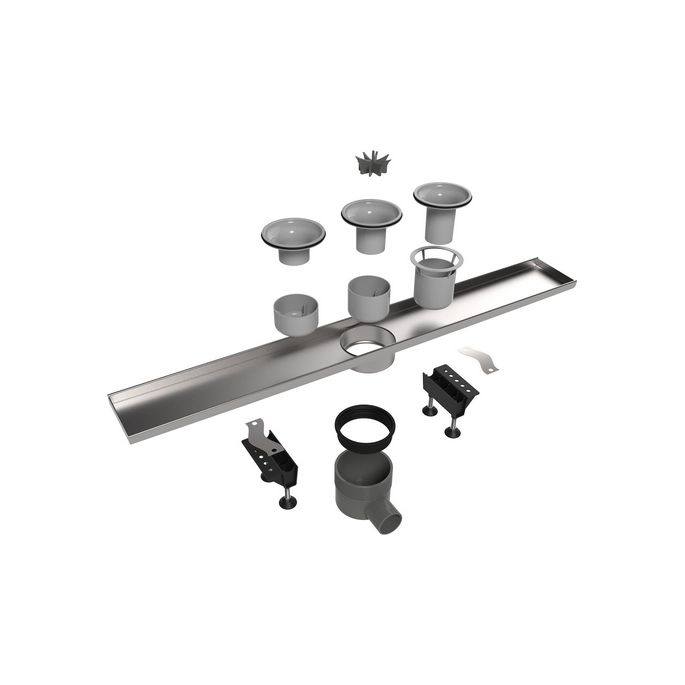

Easy Drain Multi, the worlds most multifunctional linear shower drain, has various design grates and almost limitless application possibilities. The ABS trap body can be shortened to any height and is supplied with three water seals. If required, another type of Multi trap body can be ordered separately.



Suitable for every installation situation

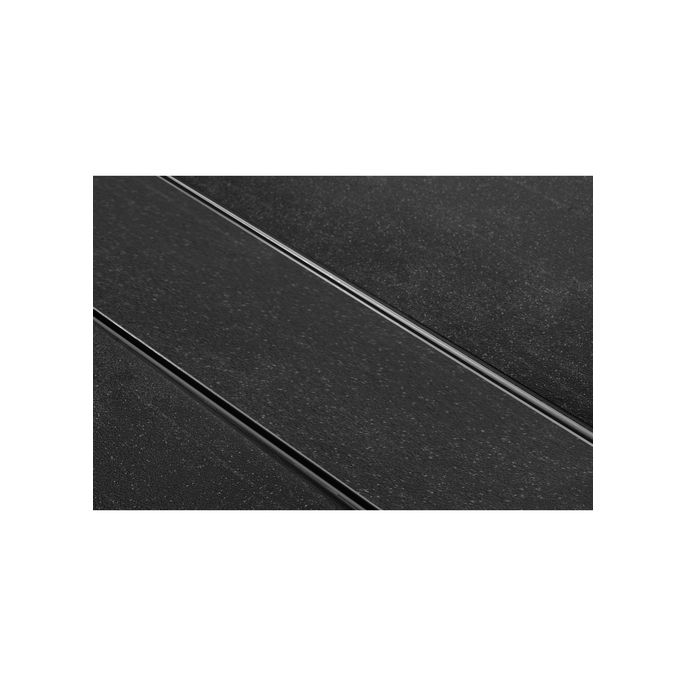

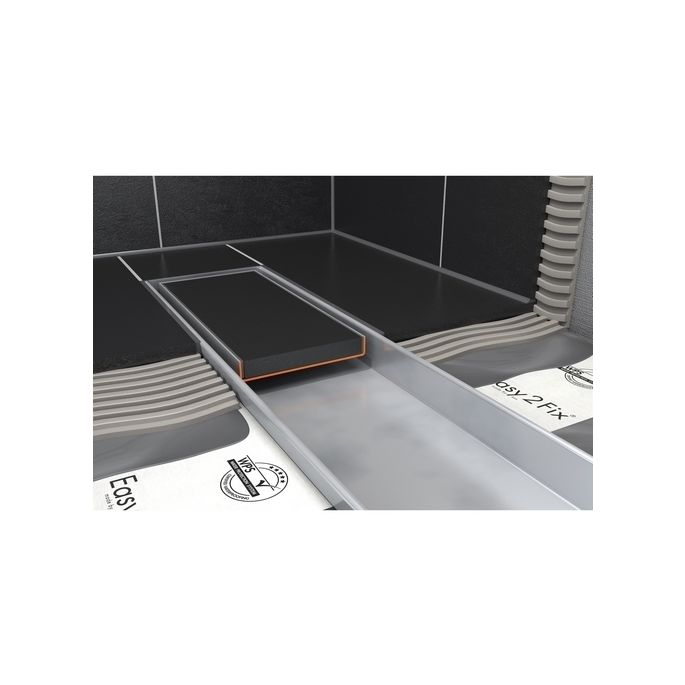

The multifunctional linear shower drain lives up to its name. Thanks to its watertight guarantee, height adjustable grate and several siphons, the multi is suitable for a wide range of wet area situations. Its reversible tile grate offers a styled appearance and presents the merging of a shower drain into the tiled floor.

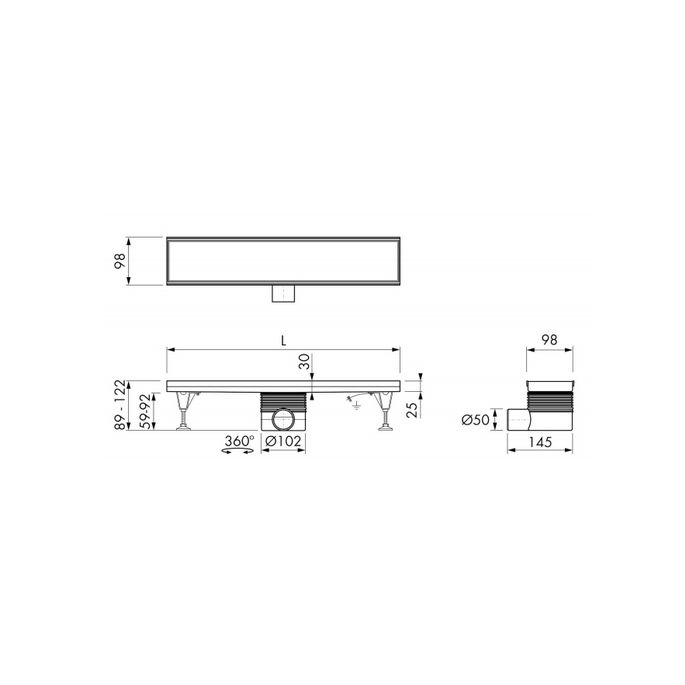

Technical information

  • Application: New construction, Renovation
  • Certification: DIN 18534, EN 1253, ETAG-022
  • Substrate: Concrete / Sand Cement, Lewis sheets, Wooden floors
  • Floor finish: Glass Mosaic, Thin tiles, Tiles / Mosaic
  • Installation depth of the built-in part: 59 mm
  • Min. installation depth: 89 mm
  • Connection: 50 mm
  • Height adjustable feet included: Yes
  • Outlet type: Rotatable outlet
  • Water seal: 30/35/50
  • Location in shower: Between two walls, Free in the floor
  • Pre-assembled sealing membrane (WPS): No.
  • Siphon characteristics: Cleanable, Height adjustable, Pivotable & adjustable
  • Tile grating depth: 12 mm
